CP_ViewBackground_White Class Reference

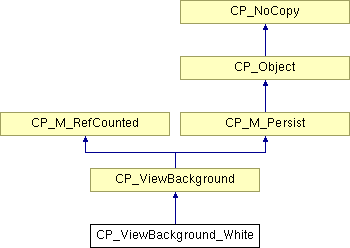

Inheritance diagram for CP_ViewBackground_White:

CP_ViewBackground CP_M_RefCounted CP_M_Persist CP_Object CP_NoCopy List of all members.

Public Member Functions

virtual ~CP_ViewBackground_White () throw ()
 Destructor.
void SetID (FourCharCode inIdentifier)
FourCharCode GetID ()
void RegisterSignal (const CP_SignalHolder &inSignal)
CP_DataValueSignal * FindSignal (const CP_String &inSignalName)
UInt32 GetNumberSignals ()
CP_String GetNthSignalName (UInt32 inSignalIndex)
void RegisterSlot (const CP_SlotHolder &inSlot)
CP_DataValueSlot FindSlot (const CP_String &inSlotName)
UInt32 GetNumberSlots ()
CP_String GetNthSlotName (UInt32 inSlotIndex)
template<class R, class P1, class P2>
CP_CommandHandlerSignal * Connect (CPLAT::CP_CommandNo cmd, void(R::*handler)(P1, P2), SInt32 mode)
template<class R, class P1, class P2>
void Connect (CP_Object *control, const CPLAT::CP_String &signalName, void(R::*handler)(P1, P2))
Constructor / Destructor
 CP_ViewBackground_White ()
 Constructor.
Drawing
virtual void Draw (CP_Canvas &inCanvas, CP_Region &inUpdateArea)

Static Public Member Functions

static void Connect (CP_Object *sender, const CP_String &signalName, CP_Object *receiver, const CP_String &slotName, const bool reciprocal=false)
static void Connect (CP_Object *sender, CP_Object *receiver, const bool reciprocal=false, const CP_String &signalName=kCP_Signal_ValueChanged, const CP_String &slotName=kCP_Slot_SetValue)
Persistance
static CP_M_Persist * PersistCreator ()

Protected Member Functions

Initialization
virtual void OnFinishPersist ()
Initialization
virtual void OnFinishPersist ()
Persistance
virtual void OnInitPersist (CP_View *inSuperview, CP_DataValueList &inDataValueList)
Initialization
virtual void OnFinishPersist ()

Protected Attributes

CP_Signals_Array * fSignals
CP_Slots_Array * fSlots
FourCharCode fObjectID

Static Protected Attributes

static FourCharCode fObjectIDCount = 0

Constructor & Destructor Documentation

CP_ViewBackground_White::CP_ViewBackground_White (   )


CP_ViewBackground_White::~CP_ViewBackground_White (   )  throw () [virtual]


Member Function Documentation

void CP_ViewBackground_White::Draw (  CP_Canvas &  inCanvas,
CP_Region &  inUpdateArea
)  [virtual]


Reimplemented from CP_ViewBackground.

CP_M_Persist * CP_ViewBackground_White::PersistCreator (   )  [static]


CP_M_Persist function to create an instance of this button. Called from our CP_PersistManager class to create persistant object from a stream.

Exceptions:
none
Returns:
CP_M_Persist * Returns a pointer to a new CP_BevelButton object.

Reimplemented from CP_ViewBackground.

void CP_ViewBackground_White::OnInitPersist (  CP_View *  inSuperview,
CP_DataValueList &  inDataValueList
)  [protected, virtual]


Reimplemented from CP_ViewBackground.

UInt32 CP_M_RefCounted::AddReference (   )  const [inherited]


Add a reference to our object, returning the new reference count.

Exceptions:
none
Returns:
UInt32 const Returns the new reference count.

UInt32 CP_M_RefCounted::RemoveReference (   )  const [inherited]


Remove a reference to our object, returning the new reference count. If the count is 0, then this object is also deleted, and 0 is returned.

Exceptions:
none
Returns:
UInt32 const Returns the new reference count.

void CP_M_RefCounted::Autorelease (   )  const [inherited]


Add the object to the topmost auto-release pool. This will ensure that the object is eventually released.

See also:
CP_AutoReleasePool
Exceptions:
none
Returns:
void

UInt32 CP_M_RefCounted::GetRefCount (   )  const [inherited]


Returns the current ref count.

Exceptions:
none
Returns:
UInt32 The current referencce count.

void CP_M_Persist::InitPersist (  CP_View *  inSuperview,
CP_DataValueList &  inDataValueList
)  [inherited]


Finish initializing our object. Calls OnInitPersist to do the actual work.

Parameters:
inSuperview The CP_View that contains this object.
inDataValueList List of data values used to construct this object.
Exceptions:
none
Returns:
void

void CP_M_Persist::FinishPersist (   )  [inherited]


Called when we have constructed our persist objects and are now giving each one a chance to finish up. Calls OnFinishPersist to do the actual work.

Exceptions:
none
Returns:
void

virtual void CP_M_Persist::OnFinishPersist (   )  [protected, virtual, inherited]


Override this do the actual finishing up of initializing the persist object. This is called after all of the other objects have been created.

Exceptions:
none
Returns:
void

Reimplemented in CP_TabView, and CP_View.

void CP_Object::SetID (  FourCharCode  inIdentifier  )  [inherited]


Sets the identifier for this object. If a specific identifier is not set with this function, then a default id is used, which is simply a running count of the number of objects created.

Parameters:
inIdentifier The objects identifier.
Returns:
void

FourCharCode CP_Object::GetID (   )  [inherited]


Returns the objects identifier.

Returns:
FourCharCode The identifier of this object.

void CP_Object::RegisterSignal (  const CP_SignalHolder &  inSignal  )  [inherited]


Registers the signal / signal name contained in the passed in inSignal object.

Parameters:
inSignal CP_SignalHolder that holds a signal and string identifier.
Returns:
void

CP_DataValueSignal * CP_Object::FindSignal (  const CP_String &  inSignalName  )  [inherited]


Finds the CP_DataValueSignal object that matches the passed in inSignalName.

Parameters:
inSignalName CP_String containing the identifier of the signal to return.
Returns:
CP_DataValueSignal * Returns a pointer to a CP_DataValueSignal object.

UInt32 CP_Object::GetNumberSignals (   )  [inherited]


Returns the number of signals for this object.

Returns:
UInt32 The number of signals.

CP_String CP_Object::GetNthSignalName (  UInt32  inSignalIndex  )  [inherited]


Returns the signal name of the passed in signal index.

Parameters:
inSignalIndex Index of the name of the signal to return.
Returns:
CP_String The name of the nth signal being returned.

void CP_Object::RegisterSlot (  const CP_SlotHolder &  inSlot  )  [inherited]


Registers the slot / slot name contained in the passed in inSlot object.

Parameters:
inSlot CP_SignalHolder that holds a slot and string identifier.
Returns:
void

CP_DataValueSlot CP_Object::FindSlot (  const CP_String &  inSlotName  )  [inherited]


Finds the CP_Slot1 object that matches the passed in inSlotName.

Parameters:
inSlotName CP_String containing the identifier of the slot to return.
Returns:
CP_DataValueSlot Returns a pointer to a CP_DataValueSlot object.

UInt32 CP_Object::GetNumberSlots (   )  [inherited]


Returns the number of slots for this object.

Returns:
UInt32 The number of slots.

CP_String CP_Object::GetNthSlotName (  UInt32  inSlotIndex  )  [inherited]


Returns the slot name of the passed in signal index.

Parameters:
inSlotIndex Index of the name of the slot to return.
Returns:
CP_String The name of the nth slot being returned.

template<class R, class P1, class P2>
CP_CommandHandlerSignal* CP_Object::Connect (  CPLAT::CP_CommandNo  cmd,
void(R::*)(P1, P2)  handler,
SInt32  mode
)  [inherited]


template<class R, class P1, class P2>
void CP_Object::Connect (  CP_Object *  control,
const CPLAT::CP_String &  signalName,
void(R::*)(P1, P2)  handler
)  [inherited]


void CP_Object::Connect (  CP_Object *  sender,
const CP_String &  signalName,
CP_Object *  receiver,
const CP_String &  slotName,
const bool  reciprocal = false
)  [static, inherited]


void CP_Object::Connect (  CP_Object *  sender,
CP_Object *  receiver,
const bool  reciprocal = false,
const CP_String &  signalName = kCP_Signal_ValueChanged,
const CP_String &  slotName = kCP_Slot_SetValue
)  [static, inherited]


Member Data Documentation

CP_Signals_Array* CP_Object::fSignals [protected, inherited]


CP_Slots_Array* CP_Object::fSlots [protected, inherited]


List of registered signals for this object.

FourCharCode CP_Object::fObjectID [protected, inherited]


List of registered slots for this object.

CPLAT_Begin_Namespace_CPLAT FourCharCode CP_Object::fObjectIDCount = 0 [static, protected, inherited]


Object identifier.

The documentation for this class was generated from the following files:
Generated on Sat Sep 17 20:02:29 2005 for CPLAT by  doxygen 1.4.0
