CP_NetProtoBase Class Reference

Base class for implementing various internet protocols, such as SMTP, FTP, POP3, etc.

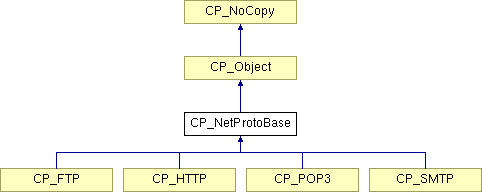

Inheritance diagram for CP_NetProtoBase:

List of all members.

Public Member Functions
void	SetID (FourCharCode inIdentifier)
FourCharCode	GetID ()
void	RegisterSignal (const CP_SignalHolder &inSignal)
CP_DataValueSignal *	FindSignal (const CP_String &inSignalName)
UInt32	GetNumberSignals ()
CP_String	GetNthSignalName (UInt32 inSignalIndex)
void	RegisterSlot (const CP_SlotHolder &inSlot)
CP_DataValueSlot	FindSlot (const CP_String &inSlotName)
UInt32	GetNumberSlots ()
CP_String	GetNthSlotName (UInt32 inSlotIndex)
template<class R, class P1, class P2>
CP_CommandHandlerSignal *	Connect (CPLAT::CP_CommandNo cmd, void(R::*handler)(P1, P2), SInt32 mode)
template<class R, class P1, class P2>
void	Connect (CP_Object *control, const CPLAT::CP_String &signalName, void(R::*handler)(P1, P2))
Constructor / Destructor
	CP_NetProtoBase (CP_Socket *inSocketConnection)
	Constructor.
	~CP_NetProtoBase ()
	Destructor.
Static Public Member Functions
static void	Connect (CP_Object *sender, const CP_String &signalName, CP_Object *receiver, const CP_String &slotName, const bool reciprocal=false)
static void	Connect (CP_Object *sender, CP_Object *receiver, const bool reciprocal=false, const CP_String &signalName=kCP_Signal_ValueChanged, const CP_String &slotName=kCP_Slot_SetValue)
Protected Attributes
CP_Socket *	fSocketConnection
CP_InternetResponse *	fLastServerResponse
CP_DataValueSignal	fProgressSignal
CP_Signals_Array *	fSignals
CP_Slots_Array *	fSlots
FourCharCode	fObjectID
Static Protected Attributes
static FourCharCode	fObjectIDCount = 0

---

Constructor & Destructor Documentation

CPLAT_Begin_Namespace_CPLAT CP_NetProtoBase::CP_NetProtoBase (  CP_Socket *  inSocketConnection  )

Constructor. Parameters: inSocketConnection  The socket connection to the underlying server. Exceptions: none

CP_NetProtoBase::~CP_NetProtoBase (   )

Destructor. Exceptions: none

---

Member Function Documentation

virtual CP_InternetResponse* CP_NetProtoBase::GetServerResponse (   )  [virtual]

Returns the last server response. Exceptions: none  Returns: CP_InternetResponse * The internet response for this protocol.

void CP_NetProtoBase::BroadcastProgress (  CP_InternetProtocolProgress &  inProtocolProgress  )

Broadcast our progress information to any objects that have added themselves as listeners to this object. This will send the signal kCP_Signal_InternetProgress which listeners should connect a slot to. Parameters: inProtocolProgress  The internnet protocol progress object that contains the progress information. This is also the value of the data value holder for the signal being sent. Exceptions: none  Returns: void

SInt32 CP_NetProtoBase::ReadLine (  CP_Socket *  inSocket, CP_String &  inOutResult )  [protected]

Receive the next line from our server. We keep receiving until the end of line is reached. Parameters: inSocket  The socket connection to the server. inOutResult Loction to return the result in. Exceptions: none  Returns: SInt32 A result code, either CP_noErr or CP_Err_ReceivingFromSocket.

bool CP_NetProtoBase::IsCommaDelimitedListOfSixOctets (  char *  p  )  [protected]

Return true if our passed in string is in the form of a 6 part address. (h1,h2,h3,h4,p1,p2) Parameters: p  The string we are checking. Exceptions: none  Returns: bool True if the passed in string is in the form of a 6 part address.

void CP_NetProtoBase::SendCommand (  CP_String &  inCommand  )  [protected]

Sends a command to the server, but does not wait for a response. Parameters: inCommand  The command to send. Exceptions: none  Returns: void

void CP_NetProtoBase::SendCommandWithReply (  CP_String &  inCommand  )  [protected]

Send the command, and wait for a response. The response will be placed in the CP_InternetResponse object associated with this object. Parameters: inCommand  The command to send. Exceptions: none  Returns: void

void CP_NetProtoBase::SendData (  CP_String &  inData  )  [protected]

Send data to our socket connection. inData needs to be formatted correctly since we just send the bytes. Parameters: inData  The data we are sending. Exceptions: none  Returns: void

void CP_NetProtoBase::SendData (  char *  inData, UInt32  inDataLength )  [protected]

Send data to our socket connection. inData needs to be formatted correctly since we just send the bytes. Parameters: inData  The data we are sending. inDataLength  The length of the data being sent. Exceptions: none  Returns: void

void CP_Object::SetID (  FourCharCode  inIdentifier  )  [inherited]

Sets the identifier for this object. If a specific identifier is not set with this function, then a default id is used, which is simply a running count of the number of objects created. Parameters: inIdentifier  The objects identifier. Returns: void

FourCharCode CP_Object::GetID (   )  [inherited]

Returns the objects identifier. Returns: FourCharCode The identifier of this object.

void CP_Object::RegisterSignal (  const CP_SignalHolder &  inSignal  )  [inherited]

Registers the signal / signal name contained in the passed in inSignal object. Parameters: inSignal  CP_SignalHolder that holds a signal and string identifier. Returns: void

CP_DataValueSignal * CP_Object::FindSignal (  const CP_String &  inSignalName  )  [inherited]

Finds the CP_DataValueSignal object that matches the passed in inSignalName. Parameters: inSignalName  CP_String containing the identifier of the signal to return. Returns: CP_DataValueSignal * Returns a pointer to a CP_DataValueSignal object.

UInt32 CP_Object::GetNumberSignals (   )  [inherited]

Returns the number of signals for this object. Returns: UInt32 The number of signals.

CP_String CP_Object::GetNthSignalName (  UInt32  inSignalIndex  )  [inherited]

Returns the signal name of the passed in signal index. Parameters: inSignalIndex  Index of the name of the signal to return. Returns: CP_String The name of the nth signal being returned.

void CP_Object::RegisterSlot (  const CP_SlotHolder &  inSlot  )  [inherited]

Registers the slot / slot name contained in the passed in inSlot object. Parameters: inSlot  CP_SignalHolder that holds a slot and string identifier. Returns: void

CP_DataValueSlot CP_Object::FindSlot (  const CP_String &  inSlotName  )  [inherited]

Finds the CP_Slot1 object that matches the passed in inSlotName. Parameters: inSlotName  CP_String containing the identifier of the slot to return. Returns: CP_DataValueSlot Returns a pointer to a CP_DataValueSlot object.

UInt32 CP_Object::GetNumberSlots (   )  [inherited]

Returns the number of slots for this object. Returns: UInt32 The number of slots.

CP_String CP_Object::GetNthSlotName (  UInt32  inSlotIndex  )  [inherited]

Returns the slot name of the passed in signal index. Parameters: inSlotIndex  Index of the name of the slot to return. Returns: CP_String The name of the nth slot being returned.

template<class R, class P1, class P2> CP_CommandHandlerSignal* CP_Object::Connect (  CPLAT::CP_CommandNo  cmd, void(R::*)(P1, P2)  handler, SInt32  mode )  [inherited]

template<class R, class P1, class P2> void CP_Object::Connect (  CP_Object *  control, const CPLAT::CP_String &  signalName, void(R::*)(P1, P2)  handler )  [inherited]

void CP_Object::Connect (  CP_Object *  sender, const CP_String &  signalName, CP_Object *  receiver, const CP_String &  slotName, const bool  reciprocal = false )  [static, inherited]

void CP_Object::Connect (  CP_Object *  sender, CP_Object *  receiver, const bool  reciprocal = false, const CP_String &  signalName = kCP_Signal_ValueChanged, const CP_String &  slotName = kCP_Slot_SetValue )  [static, inherited]

---

Member Data Documentation

CP_Socket* CP_NetProtoBase::fSocketConnection [protected]

CP_InternetResponse* CP_NetProtoBase::fLastServerResponse [protected]

The CP_Socket object that communicates between CPLAT and the server.

CP_DataValueSignal CP_NetProtoBase::fProgressSignal [protected]

This object contains the last response for the server, each different protocol class will implement its own response class to handle server responses.

CP_Signals_Array* CP_Object::fSignals [protected, inherited]

CP_Slots_Array* CP_Object::fSlots [protected, inherited]

List of registered signals for this object.

FourCharCode CP_Object::fObjectID [protected, inherited]

List of registered slots for this object.

CPLAT_Begin_Namespace_CPLAT FourCharCode CP_Object::fObjectIDCount = 0 [static, protected, inherited]

Object identifier.

---

The documentation for this class was generated from the following files:

• CP_NetProtoBase.h
• CP_NetProtoBase.cpp

---
