CP_TabGroup Class Reference

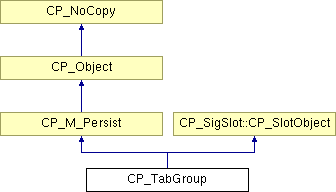

Inheritance diagram for CP_TabGroup:

CP_M_Persist CP_SigSlot::CP_SlotObject CP_Object CP_NoCopy List of all members.

Public Member Functions

void SetID (FourCharCode inIdentifier)
FourCharCode GetID ()
void RegisterSignal (const CP_SignalHolder &inSignal)
CP_DataValueSignal * FindSignal (const CP_String &inSignalName)
UInt32 GetNumberSignals ()
CP_String GetNthSignalName (UInt32 inSignalIndex)
void RegisterSlot (const CP_SlotHolder &inSlot)
CP_DataValueSlot FindSlot (const CP_String &inSlotName)
UInt32 GetNumberSlots ()
CP_String GetNthSlotName (UInt32 inSlotIndex)
template<class R, class P1, class P2>
CP_CommandHandlerSignal * Connect (CPLAT::CP_CommandNo cmd, void(R::*handler)(P1, P2), SInt32 mode)
template<class R, class P1, class P2>
void Connect (CP_Object *control, const CPLAT::CP_String &signalName, void(R::*handler)(P1, P2))
void disconnect_all ()
void signal_connect (CP_Signal *inSender)
void signal_disconnect (CP_Signal *inSender)
Constructor / Destructor
 CP_TabGroup ()
 Constructor.
virtual ~CP_TabGroup () throw ()
 Destructor.
Targets
void AddTarget (CP_View *inTarget)
void RemoveTaget (CP_View *inTarget)

Static Public Member Functions

static void Connect (CP_Object *sender, const CP_String &signalName, CP_Object *receiver, const CP_String &slotName, const bool reciprocal=false)
static void Connect (CP_Object *sender, CP_Object *receiver, const bool reciprocal=false, const CP_String &signalName=kCP_Signal_ValueChanged, const CP_String &slotName=kCP_Slot_SetValue)
Persistance
static CP_M_Persist * PersistCreator ()

Protected Member Functions

Persistance
virtual void OnInitPersist (CP_View *inSuperview, CP_DataValueList &inDataValueList)
Targets
virtual void TargetNextField ()
virtual void TargetPreviousField ()
SInt32 GetCurrentTargetIndex ()

Protected Attributes

CP_SubViews_List * fTabTargets
CP_Signals_Array * fSignals
CP_Slots_Array * fSlots
FourCharCode fObjectID
sender_set fSenders

Static Protected Attributes

static FourCharCode fObjectIDCount = 0

Private Member Functions

void EditFieldExit (CP_DataValueHolder &inValue, OSStatus &inOutStatus)

Constructor & Destructor Documentation

CPLAT_Begin_Namespace_CPLAT CP_TabGroup::CP_TabGroup (   )


Constructor.

CP_TabGroup::~CP_TabGroup (   )  throw () [virtual]


Destructor.

Member Function Documentation

CP_M_Persist * CP_TabGroup::PersistCreator (   )  [static]


CP_M_Persist function to create an instance of this button. Called from our CP_PersistManager class to create persistant object from a stream.

Exceptions:
none
Returns:
CP_M_Persist * Returns a pointer to a new CP_ProgressBar object.

void CP_TabGroup::AddTarget (  CP_View *  inTarget  )


void CP_TabGroup::RemoveTaget (  CP_View *  inTarget  )


void CP_TabGroup::OnInitPersist (  CP_View *  inSuperview,
CP_DataValueList &  inDataValueList
)  [protected, virtual]


Called from the persistance classes once an object has been created, and now needs to be initialized. This method is used to initialize the data members of the class from the passed in CP_DataValueList which contains fields to initialize a data member.

Once the data members have been initialized, a platforms implementation is created through the CreatePlatformImp() method.

Parameters:
inSubViewHandler The superview that contains this progress bar.
inDataValueList List of the values for setting the data members of this class to.
Exceptions:
none
Returns:
void

Reimplemented from CP_M_Persist.

void CP_TabGroup::TargetNextField (   )  [protected, virtual]


void CP_TabGroup::TargetPreviousField (   )  [protected, virtual]


SInt32 CP_TabGroup::GetCurrentTargetIndex (   )  [protected]


void CP_TabGroup::EditFieldExit (  CP_DataValueHolder &  inValue,
OSStatus &  inOutStatus
)  [private]


void CP_M_Persist::InitPersist (  CP_View *  inSuperview,
CP_DataValueList &  inDataValueList
)  [inherited]


Finish initializing our object. Calls OnInitPersist to do the actual work.

Parameters:
inSuperview The CP_View that contains this object.
inDataValueList List of data values used to construct this object.
Exceptions:
none
Returns:
void

void CP_M_Persist::FinishPersist (   )  [inherited]


Called when we have constructed our persist objects and are now giving each one a chance to finish up. Calls OnFinishPersist to do the actual work.

Exceptions:
none
Returns:
void

virtual void CP_M_Persist::OnFinishPersist (   )  [protected, virtual, inherited]


Override this do the actual finishing up of initializing the persist object. This is called after all of the other objects have been created.

Exceptions:
none
Returns:
void

Reimplemented in CP_TabView, and CP_View.

void CP_Object::SetID (  FourCharCode  inIdentifier  )  [inherited]


Sets the identifier for this object. If a specific identifier is not set with this function, then a default id is used, which is simply a running count of the number of objects created.

Parameters:
inIdentifier The objects identifier.
Returns:
void

FourCharCode CP_Object::GetID (   )  [inherited]


Returns the objects identifier.

Returns:
FourCharCode The identifier of this object.

void CP_Object::RegisterSignal (  const CP_SignalHolder &  inSignal  )  [inherited]


Registers the signal / signal name contained in the passed in inSignal object.

Parameters:
inSignal CP_SignalHolder that holds a signal and string identifier.
Returns:
void

CP_DataValueSignal * CP_Object::FindSignal (  const CP_String &  inSignalName  )  [inherited]


Finds the CP_DataValueSignal object that matches the passed in inSignalName.

Parameters:
inSignalName CP_String containing the identifier of the signal to return.
Returns:
CP_DataValueSignal * Returns a pointer to a CP_DataValueSignal object.

UInt32 CP_Object::GetNumberSignals (   )  [inherited]


Returns the number of signals for this object.

Returns:
UInt32 The number of signals.

CP_String CP_Object::GetNthSignalName (  UInt32  inSignalIndex  )  [inherited]


Returns the signal name of the passed in signal index.

Parameters:
inSignalIndex Index of the name of the signal to return.
Returns:
CP_String The name of the nth signal being returned.

void CP_Object::RegisterSlot (  const CP_SlotHolder &  inSlot  )  [inherited]


Registers the slot / slot name contained in the passed in inSlot object.

Parameters:
inSlot CP_SignalHolder that holds a slot and string identifier.
Returns:
void

CP_DataValueSlot CP_Object::FindSlot (  const CP_String &  inSlotName  )  [inherited]


Finds the CP_Slot1 object that matches the passed in inSlotName.

Parameters:
inSlotName CP_String containing the identifier of the slot to return.
Returns:
CP_DataValueSlot Returns a pointer to a CP_DataValueSlot object.

UInt32 CP_Object::GetNumberSlots (   )  [inherited]


Returns the number of slots for this object.

Returns:
UInt32 The number of slots.

CP_String CP_Object::GetNthSlotName (  UInt32  inSlotIndex  )  [inherited]


Returns the slot name of the passed in signal index.

Parameters:
inSlotIndex Index of the name of the slot to return.
Returns:
CP_String The name of the nth slot being returned.

template<class R, class P1, class P2>
CP_CommandHandlerSignal* CP_Object::Connect (  CPLAT::CP_CommandNo  cmd,
void(R::*)(P1, P2)  handler,
SInt32  mode
)  [inherited]


template<class R, class P1, class P2>
void CP_Object::Connect (  CP_Object *  control,
const CPLAT::CP_String &  signalName,
void(R::*)(P1, P2)  handler
)  [inherited]


void CP_Object::Connect (  CP_Object *  sender,
const CP_String &  signalName,
CP_Object *  receiver,
const CP_String &  slotName,
const bool  reciprocal = false
)  [static, inherited]


void CP_Object::Connect (  CP_Object *  sender,
CP_Object *  receiver,
const bool  reciprocal = false,
const CP_String &  signalName = kCP_Signal_ValueChanged,
const CP_String &  slotName = kCP_Slot_SetValue
)  [static, inherited]


void CP_SigSlot::CP_SlotObject::disconnect_all (   )  [inherited]


void CP_SigSlot::CP_SlotObject::signal_connect (  CP_Signal *  inSender  )  [inherited]


void CP_SigSlot::CP_SlotObject::signal_disconnect (  CP_Signal *  inSender  )  [inherited]


Member Data Documentation

CP_SubViews_List* CP_TabGroup::fTabTargets [protected]


CP_Signals_Array* CP_Object::fSignals [protected, inherited]


CP_Slots_Array* CP_Object::fSlots [protected, inherited]


List of registered signals for this object.

FourCharCode CP_Object::fObjectID [protected, inherited]


List of registered slots for this object.

CPLAT_Begin_Namespace_CPLAT FourCharCode CP_Object::fObjectIDCount = 0 [static, protected, inherited]


Object identifier.

sender_set CP_SigSlot::CP_SlotObject::fSenders [protected, inherited]


The documentation for this class was generated from the following files:
