CP_TimedTask Class Reference

A class to call a user slot at specified time intervals. More...

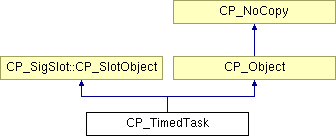

Inheritance diagram for CP_TimedTask:

List of all members.


Public Member Functions
void	Start ()
void	Stop ()
virtual void	HandleTask ()
bool	IsRunning ()
void	disconnect_all ()
void	signal_connect (CP_Signal *inSender)
void	signal_disconnect (CP_Signal *inSender)
void	SetID (FourCharCode inIdentifier)
FourCharCode	GetID ()
void	RegisterSignal (const CP_SignalHolder &inSignal)
CP_DataValueSignal *	FindSignal (const CP_String &inSignalName)
UInt32	GetNumberSignals ()
CP_String	GetNthSignalName (UInt32 inSignalIndex)
void	RegisterSlot (const CP_SlotHolder &inSlot)
CP_DataValueSlot	FindSlot (const CP_String &inSlotName)
UInt32	GetNumberSlots ()
CP_String	GetNthSlotName (UInt32 inSlotIndex)
template<class R, class P1, class P2>
CP_CommandHandlerSignal *	Connect (CPLAT::CP_CommandNo cmd, void(R::*handler)(P1, P2), SInt32 mode)
template<class R, class P1, class P2>
void	Connect (CP_Object control, const CPLAT::CP_String &signalName, void(R::handler)(P1, P2))
Constructor / Destructor
	CP_TimedTask (double inMilliSecFrequency, UInt32 inUserData=0)
	Constructor.
virtual	~CP_TimedTask () throw ()
	Destructor.
Static Public Member Functions
static void	Connect (CP_Object sender, const CP_String &signalName, CP_Object receiver, const CP_String &slotName, const bool reciprocal=false)
static void	Connect (CP_Object sender, CP_Object receiver, const bool reciprocal=false, const CP_String &signalName=kCP_Signal_ValueChanged, const CP_String &slotName=kCP_Slot_SetValue)
Protected Member Functions
EventLoopTimerUPP	GetTimerUPP ()
Protected Attributes
bool	fIsRunning
UInt32	fUserData
CP_DataValueSignal	fTimerTaskSignal
double	fMilliSecFrequency
EventLoopTimerRef	fTimer
sender_set	fSenders
CP_Signals_Array *	fSignals
CP_Slots_Array *	fSlots
FourCharCode	fObjectID
Static Protected Attributes
static FourCharCode	fObjectIDCount = 0
Static Private Member Functions
static pascal void	CP_TimedTask_timerCallback (EventLoopTimerRef inTimer, void *userData)

Detailed Description

This classs is used to call a user defined slot at a specified time interval, measured in milliseconds.

Example usage:

                CPLAT::CP_TimedTask             *timer = CP_new CPLAT::CP_TimedTask( kEventDurationSecond * 5, dataValue );

                timer->FindSignal( kCP_Signal_TimedTask )->connect( CP_SigSlot::slot(this, &Timer_Application::TimerTask) );

                timer->Start();

In this above example, the slot TimerTask will be called every 5 seconds. The dataValue passed to the CP_TimedTask constructor will be passed to the timer slot you have defined. You can use this data member anyway you want.

Constructor & Destructor Documentation

CPLAT_Begin_Namespace_CPLAT CP_TimedTask::CP_TimedTask ( double inMilliSecFrequency,

UInt32 inUserData = 0

)

Constructor.

Exceptions:

none

CP_TimedTask::~CP_TimedTask ( ) throw () [virtual]

Destructor.

Exceptions:

none

Member Function Documentation

void CP_TimedTask::Start ( )

Starts the timer.

Exceptions:

none

Returns:
void

void CP_TimedTask::Stop ( )

Stops the timer.

Exceptions:

none

Returns:
void

void CP_TimedTask::HandleTask ( ) [virtual]

Called when the timer fires. this will call the timer task signal to handle the user defined function that gets called when the timer fires.

Exceptions:

none

Returns:
void

bool CP_TimedTask::IsRunning ( )

Returns the flag that indicates if this timer is currently running.

Exceptions:

none

Returns:
bool True if the timer is currently running.

EventLoopTimerUPP CP_TimedTask::GetTimerUPP ( ) [protected]

Returns the EventLoopTimerUPP for our timer.

Exceptions:

none

Returns:
EventLoopTimerUPP The Carbon event loop timer.

pascal void CP_TimedTask::CP_TimedTask_timerCallback ( EventLoopTimerRef inTimer,

void * inUserData

) [static, private]

The Carbon event timer callback that is registered with the Carbon event timer. This calls the HandleTask() method of this class.

Parameters:

inTimer Not used.

inUserData Pointer to this object.

Exceptions:

none

Returns:
void

void CP_SigSlot::CP_SlotObject::disconnect_all ( ) [inherited]

void CP_SigSlot::CP_SlotObject::signal_connect ( CP_Signal * inSender ) [inherited]

void CP_SigSlot::CP_SlotObject::signal_disconnect ( CP_Signal * inSender ) [inherited]

void CP_Object::SetID ( FourCharCode inIdentifier ) [inherited]

Sets the identifier for this object. If a specific identifier is not set with this function, then a default id is used, which is simply a running count of the number of objects created.

Parameters:

inIdentifier The objects identifier.

Returns:
void

FourCharCode CP_Object::GetID ( ) [inherited]

Returns the objects identifier.

Returns:
FourCharCode The identifier of this object.

void CP_Object::RegisterSignal ( const CP_SignalHolder & inSignal ) [inherited]

Registers the signal / signal name contained in the passed in inSignal object.

Parameters:

inSignal CP_SignalHolder that holds a signal and string identifier.

Returns:
void

CP_DataValueSignal * CP_Object::FindSignal ( const CP_String & inSignalName ) [inherited]

Finds the CP_DataValueSignal object that matches the passed in inSignalName.

Parameters:

inSignalName CP_String containing the identifier of the signal to return.

Returns:
CP_DataValueSignal * Returns a pointer to a CP_DataValueSignal object.

UInt32 CP_Object::GetNumberSignals ( ) [inherited]

Returns the number of signals for this object.

Returns:
UInt32 The number of signals.

CP_String CP_Object::GetNthSignalName ( UInt32 inSignalIndex ) [inherited]

Returns the signal name of the passed in signal index.

Parameters:

inSignalIndex Index of the name of the signal to return.

Returns:
CP_String The name of the nth signal being returned.

void CP_Object::RegisterSlot ( const CP_SlotHolder & inSlot ) [inherited]

Registers the slot / slot name contained in the passed in inSlot object.

Parameters:

inSlot CP_SignalHolder that holds a slot and string identifier.

Returns:
void

CP_DataValueSlot CP_Object::FindSlot ( const CP_String & inSlotName ) [inherited]

Finds the CP_Slot1 object that matches the passed in inSlotName.

Parameters:

inSlotName CP_String containing the identifier of the slot to return.

Returns:
CP_DataValueSlot Returns a pointer to a CP_DataValueSlot object.

UInt32 CP_Object::GetNumberSlots ( ) [inherited]

Returns the number of slots for this object.

Returns:
UInt32 The number of slots.

CP_String CP_Object::GetNthSlotName ( UInt32 inSlotIndex ) [inherited]

Returns the slot name of the passed in signal index.

Parameters:

inSlotIndex Index of the name of the slot to return.

Returns:
CP_String The name of the nth slot being returned.

template<class R, class P1, class P2>

CP_CommandHandlerSignal* CP_Object::Connect ( CPLAT::CP_CommandNo cmd,

void(R::*)(P1, P2) handler,

SInt32 mode

) [inherited]

template<class R, class P1, class P2>

void CP_Object::Connect ( CP_Object * control,

const CPLAT::CP_String & signalName,

void(R::*)(P1, P2) handler

) [inherited]

void CP_Object::Connect ( CP_Object * sender,

const CP_String & signalName,

CP_Object * receiver,

const CP_String & slotName,

const bool reciprocal = false

) [static, inherited]

void CP_Object::Connect ( CP_Object * sender,

CP_Object * receiver,

const bool reciprocal = false,

const CP_String & signalName = kCP_Signal_ValueChanged,

const CP_String & slotName = kCP_Slot_SetValue

) [static, inherited]
