CP_TV_DataBrowser_CH_Background Class Reference

Base content handler.

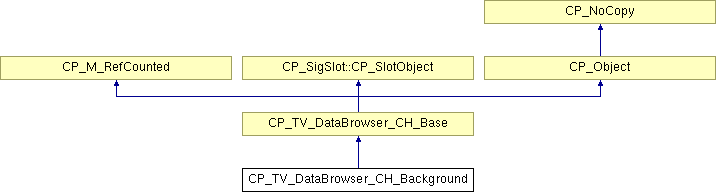

Inheritance diagram for CP_TV_DataBrowser_CH_Background:

List of all members.


Public Member Functions
virtual void	SetupCanvas (CP_Canvas &, CP_S_TV_DB_ParamBlock &)
virtual void	HandleRowExpanded (CP_S_TV_DB_ParamBlock &inParamBlock)
virtual void	HandleRowCollapsed (CP_S_TV_DB_ParamBlock &inParamBlock)
void	disconnect_all ()
void	signal_connect (CP_Signal *inSender)
void	signal_disconnect (CP_Signal *inSender)
void	SetID (FourCharCode inIdentifier)
FourCharCode	GetID ()
void	RegisterSignal (const CP_SignalHolder &inSignal)
CP_DataValueSignal *	FindSignal (const CP_String &inSignalName)
UInt32	GetNumberSignals ()
CP_String	GetNthSignalName (UInt32 inSignalIndex)
void	RegisterSlot (const CP_SlotHolder &inSlot)
CP_DataValueSlot	FindSlot (const CP_String &inSlotName)
UInt32	GetNumberSlots ()
CP_String	GetNthSlotName (UInt32 inSlotIndex)
template<class R, class P1, class P2>
CP_CommandHandlerSignal *	Connect (CPLAT::CP_CommandNo cmd, void(R::*handler)(P1, P2), SInt32 mode)
template<class R, class P1, class P2>
void	Connect (CP_Object control, const CPLAT::CP_String &signalName, void(R::handler)(P1, P2))
Constructor / Destructor
	CP_TV_DataBrowser_CH_Background ()
	Constructor.
virtual	~CP_TV_DataBrowser_CH_Background () throw ()
	Destructor.
Getters
CP_ARGBColor	GetBackgroundColor ()
CP_ARGBColor	GetSelectedColBackgroundColor ()
Setters
void	SetBackgroundColor (const CP_ARGBColor &inColor)
void	SetSelectedColBackgroundColor (const CP_ARGBColor &inColor)
Static Public Member Functions
static void	Connect (CP_Object sender, const CP_String &signalName, CP_Object receiver, const CP_String &slotName, const bool reciprocal=false)
static void	Connect (CP_Object sender, CP_Object receiver, const bool reciprocal=false, const CP_String &signalName=kCP_Signal_ValueChanged, const CP_String &slotName=kCP_Slot_SetValue)
Protected Member Functions
Drawing
virtual void	OnDraw (CP_Canvas &inDestCanvas, CP_S_TV_DB_ParamBlock &inParamBlock)
Protected Attributes
CP_ARGBColor	fBackgroundColor
CP_ARGBColor	fSelectedColumnBackgroundColor
SInt16	fLeftIndent
SInt16	fTopIndent
SInt16	fRightIndent
SInt16	fBottomIndent
bool	fEditingSupported
CP_DataValueList	fHandlerProperties
sender_set	fSenders
CP_Signals_Array *	fSignals
CP_Slots_Array *	fSlots
FourCharCode	fObjectID
Static Protected Attributes
static FourCharCode	fObjectIDCount = 0

Constructor & Destructor Documentation

CP_TV_DataBrowser_CH_Background::CP_TV_DataBrowser_CH_Background ( )

Constructor.

CP_TV_DataBrowser_CH_Background::~CP_TV_DataBrowser_CH_Background ( ) throw () [virtual]

Destructor.

Member Function Documentation

virtual void CP_TV_DataBrowser_CH_Background::SetupCanvas ( CP_Canvas & ,

CP_S_TV_DB_ParamBlock &

) [virtual]

CP_ARGBColor CP_TV_DataBrowser_CH_Background::GetBackgroundColor ( )

CP_ARGBColor CP_TV_DataBrowser_CH_Background::GetSelectedColBackgroundColor ( )

void CP_TV_DataBrowser_CH_Background::SetBackgroundColor ( const CP_ARGBColor & inColor )

void CP_TV_DataBrowser_CH_Background::SetSelectedColBackgroundColor ( const CP_ARGBColor & inColor )

void CP_TV_DataBrowser_CH_Background::OnDraw ( CP_Canvas & inDestCanvas,

CP_S_TV_DB_ParamBlock & inParamBlock

) [protected, virtual]

Reimplemented from CP_TV_DataBrowser_CH_Base.

void CP_TV_DataBrowser_CH_Base::Draw ( CP_Canvas & inDestCanvas,

CP_S_TV_DB_ParamBlock & inParamBlock

) [inherited]

virtual bool CP_TV_DataBrowser_CH_Base::HandlesClicks ( ) [virtual, inherited]

Reimplemented in CP_TV_DataBrowser_CH_EditString.

virtual void CP_TV_DataBrowser_CH_Base::HandleClick ( CP_S_TV_DB_ParamBlock & ,

const CP_Point &

) [virtual, inherited]

Reimplemented in CP_TV_DataBrowser_CH_EditString.

void CP_TV_DataBrowser_CH_Base::AddProperty ( const CP_String & inDataKey,

const CP_DataValueHolder & inDataValue

) [inherited]

void CP_TV_DataBrowser_CH_Base::SetProperty ( const CP_String & inDataKey,

const CP_DataValueHolder & inDataValue

) [inherited]

bool CP_TV_DataBrowser_CH_Base::GetOptionalProperty ( const CP_String & inDataKey,

CP_DataValueHolder & inOutDataValue

) [inherited]

void CP_TV_DataBrowser_CH_Base::HandleRowExpanded ( CP_S_TV_DB_ParamBlock & inParamBlock ) [virtual, inherited]

void CP_TV_DataBrowser_CH_Base::HandleRowCollapsed ( CP_S_TV_DB_ParamBlock & inParamBlock ) [virtual, inherited]

Reimplemented in CP_TV_DataBrowser_CH_View.

UInt32 CP_M_RefCounted::AddReference ( ) const [inherited]

Add a reference to our object, returning the new reference count.

Exceptions:

none

Returns:
UInt32 const Returns the new reference count.

UInt32 CP_M_RefCounted::RemoveReference ( ) const [inherited]

Remove a reference to our object, returning the new reference count. If the count is 0, then this object is also deleted, and 0 is returned.

Exceptions:

none

Returns:
UInt32 const Returns the new reference count.

void CP_M_RefCounted::Autorelease ( ) const [inherited]

Add the object to the topmost auto-release pool. This will ensure that the object is eventually released.
See also:
CP_AutoReleasePool

Exceptions:

none

Returns:
void

UInt32 CP_M_RefCounted::GetRefCount ( ) const [inherited]

Returns the current ref count.

Exceptions:

none

Returns:
UInt32 The current referencce count.

void CP_SigSlot::CP_SlotObject::disconnect_all ( ) [inherited]

void CP_SigSlot::CP_SlotObject::signal_connect ( CP_Signal * inSender ) [inherited]

void CP_SigSlot::CP_SlotObject::signal_disconnect ( CP_Signal * inSender ) [inherited]

void CP_Object::SetID ( FourCharCode inIdentifier ) [inherited]

Sets the identifier for this object. If a specific identifier is not set with this function, then a default id is used, which is simply a running count of the number of objects created.

Parameters:

inIdentifier The objects identifier.

Returns:
void

FourCharCode CP_Object::GetID ( ) [inherited]

Returns the objects identifier.

Returns:
FourCharCode The identifier of this object.

void CP_Object::RegisterSignal ( const CP_SignalHolder & inSignal ) [inherited]

Registers the signal / signal name contained in the passed in inSignal object.

Parameters:

inSignal CP_SignalHolder that holds a signal and string identifier.

Returns:
void

CP_DataValueSignal * CP_Object::FindSignal ( const CP_String & inSignalName ) [inherited]

Finds the CP_DataValueSignal object that matches the passed in inSignalName.

Parameters:

inSignalName CP_String containing the identifier of the signal to return.

Returns:
CP_DataValueSignal * Returns a pointer to a CP_DataValueSignal object.

UInt32 CP_Object::GetNumberSignals ( ) [inherited]

Returns the number of signals for this object.

Returns:
UInt32 The number of signals.

CP_String CP_Object::GetNthSignalName ( UInt32 inSignalIndex ) [inherited]

Returns the signal name of the passed in signal index.

Parameters:

inSignalIndex Index of the name of the signal to return.

Returns:
CP_String The name of the nth signal being returned.

void CP_Object::RegisterSlot ( const CP_SlotHolder & inSlot ) [inherited]

Registers the slot / slot name contained in the passed in inSlot object.

Parameters:

inSlot CP_SignalHolder that holds a slot and string identifier.

Returns:
void

CP_DataValueSlot CP_Object::FindSlot ( const CP_String & inSlotName ) [inherited]

Finds the CP_Slot1 object that matches the passed in inSlotName.

Parameters:

inSlotName CP_String containing the identifier of the slot to return.

Returns:
CP_DataValueSlot Returns a pointer to a CP_DataValueSlot object.

UInt32 CP_Object::GetNumberSlots ( ) [inherited]

Returns the number of slots for this object.

Returns:
UInt32 The number of slots.

CP_String CP_Object::GetNthSlotName ( UInt32 inSlotIndex ) [inherited]

Returns the slot name of the passed in signal index.

Parameters:

inSlotIndex Index of the name of the slot to return.

Returns:
CP_String The name of the nth slot being returned.

template<class R, class P1, class P2>

CP_CommandHandlerSignal* CP_Object::Connect ( CPLAT::CP_CommandNo cmd,

void(R::*)(P1, P2) handler,

SInt32 mode

) [inherited]

template<class R, class P1, class P2>

void CP_Object::Connect ( CP_Object * control,

const CPLAT::CP_String & signalName,

void(R::*)(P1, P2) handler

) [inherited]

void CP_Object::Connect ( CP_Object * sender,

const CP_String & signalName,

CP_Object * receiver,

const CP_String & slotName,

const bool reciprocal = false

) [static, inherited]

void CP_Object::Connect ( CP_Object * sender,

CP_Object * receiver,

const bool reciprocal = false,

const CP_String & signalName = kCP_Signal_ValueChanged,

const CP_String & slotName = kCP_Slot_SetValue

) [static, inherited]
